profile

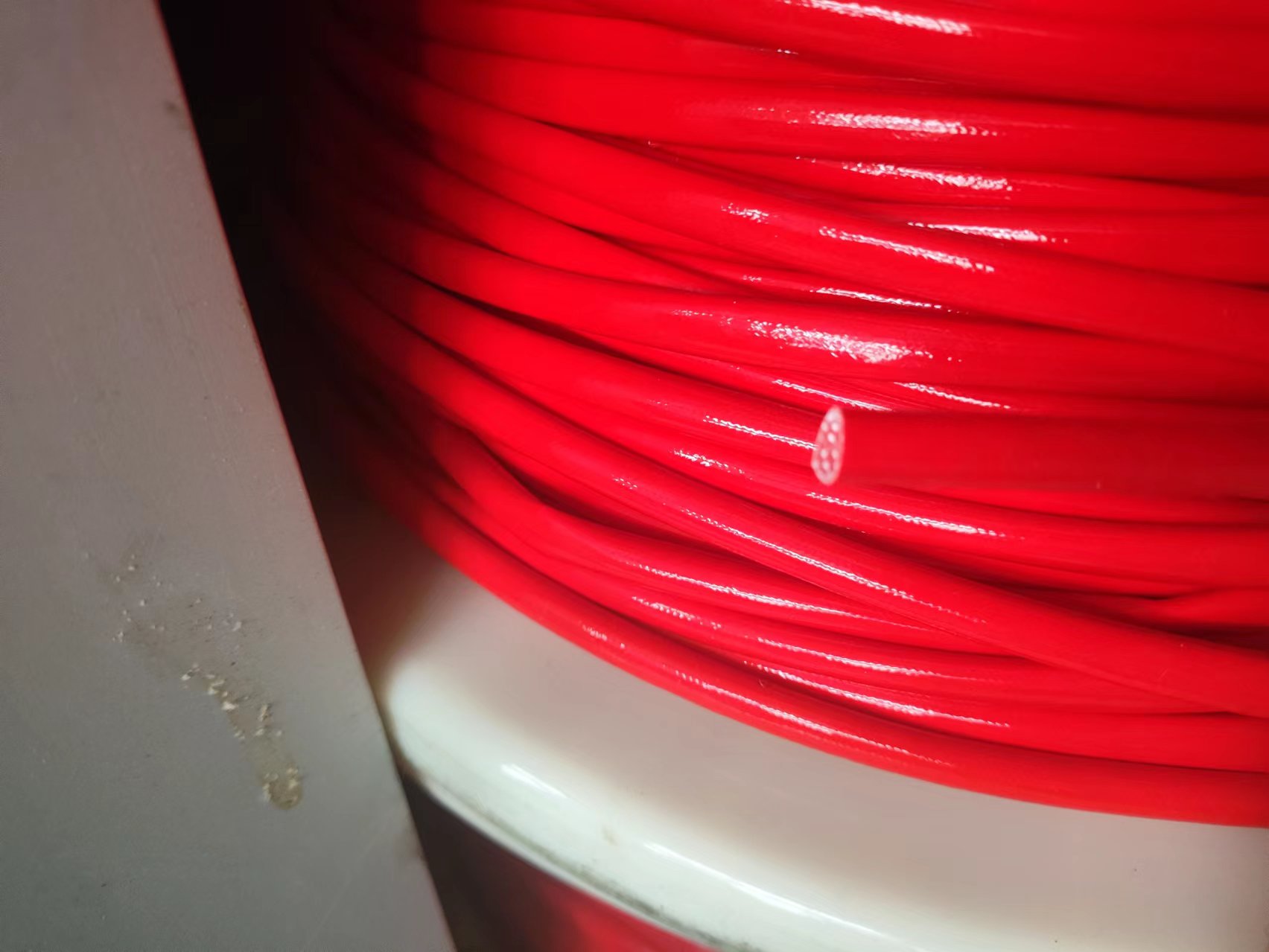

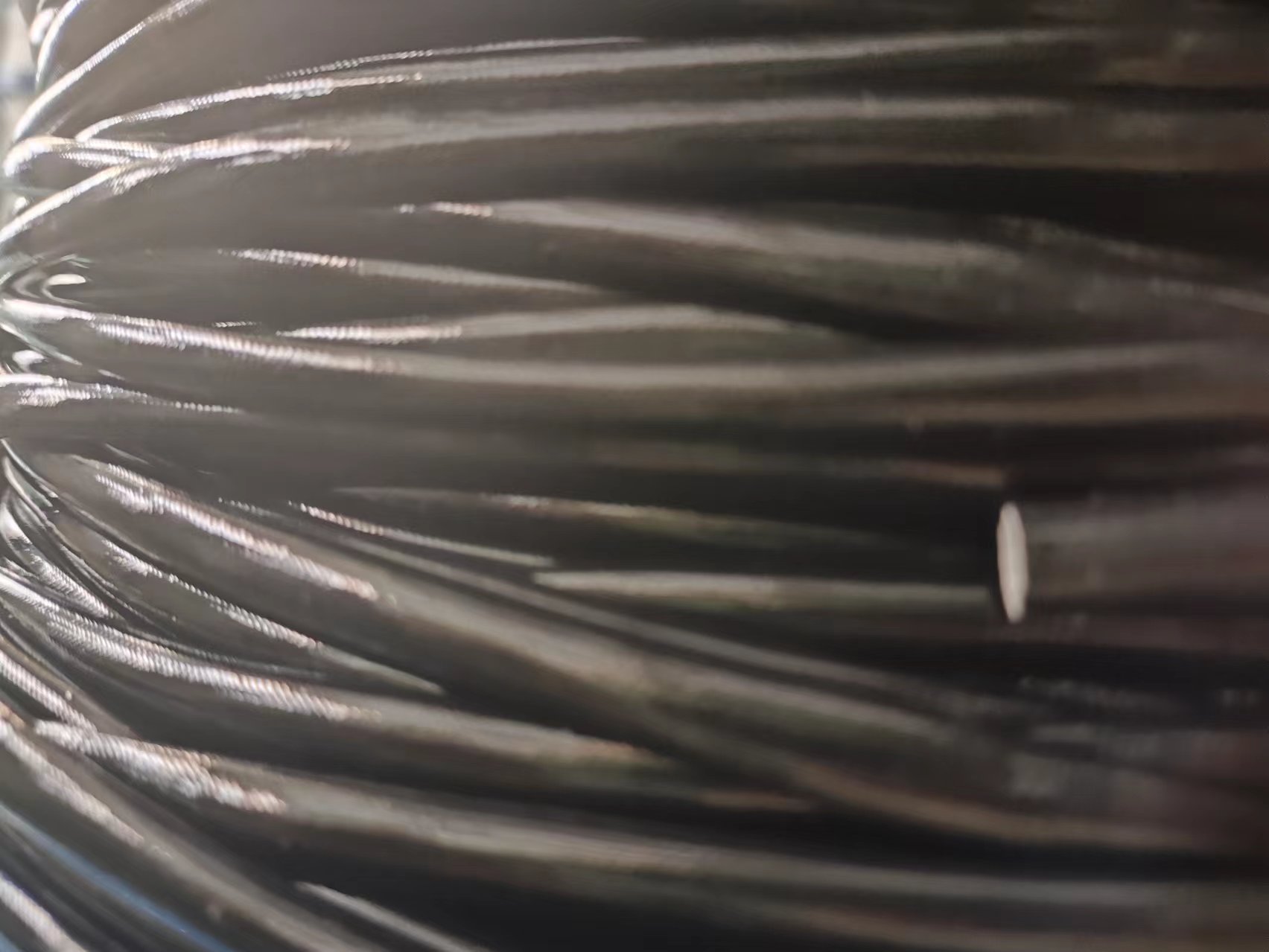

Silicone rubber fiberglass (inner rubber outer fiber) sleeve is made by extruding silicone rubber into a tube, and then adding it to woven fiberglass for high-temperature treatment with silicone resin. It has excellent insulation and temperature resistance protection, and is also widely used for insulation protection of H&N grade motors, household appliances, electric heating equipment, special lighting fixtures, and other equipment.
-
Features
-
Application
lt is widely used in wiring insulation and mechanical protection for anelectricmotors,transformers and electricalinstruments.
-
Specifications
Type Testing condition Inflammability Heat resistance Average voltage Individual SRT-70 UL1441 UL VW-1 +200℃-10℃ 7000V 6000V -
Performance
Item Value Continuous use Temperature Range -60℃+200℃ Temperature Resistance 200℃±2℃ 168hours≥1/2voltage value Aging Test 200℃，6hours，no crack Cold bend no crack Horizontal Flame Test <30seconds Flame Retardance <30seconds Withstand voltage <4000v -
Inside Diameter
inside diameter Wall thickness Nominal Tolerance 1.0～2.5mm +0.20-0.00mm 0.60±0.20mm 3.0～5.5mm +0.50-0.00mm 0.60±0.20mm 6.0～9.0mm +0.50-0.00mm 0.60±0.20mm 10.0～12.0mm +0.70-0.00mm 0.60±0.20mm
